FU-Tone is proud to partner with the legendary Mighty Mite!

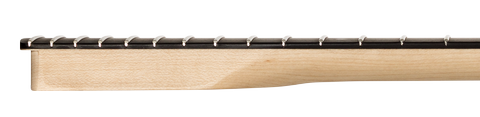

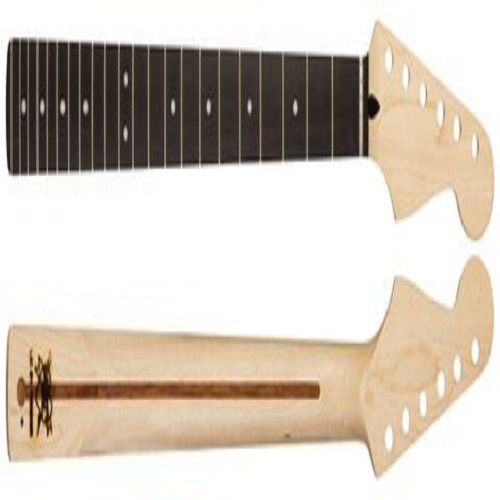

Neck & Tuners
Strat® style replacement neck features a compound radius, ebony fingerboard fitted with 22 medium frets. If installing vintage tuners; you may be required to install 10 mm adapter bushings. Mighty Mite does not supply these bushings.
Wood Variations & Assembly
This Strat® style neck is made in Indonesia with quality tone woods. Due to the nature of wood, no two necks are the same and may differ from what is pictured. Never force the neck into the pocket; it should just drop into the neck pocket or be a little snug. Remember that the finish of the neck and body will make the neck pocket smaller.
WOODS & MATERIALS
Fretboard Material Ebony
Neck Material Maple
Skunk Stripe Merbau stripe
Finish Satin, Thin Polyurethane Oil Based
SIZE & SHAPE
Neck Profile Shape C Shape
Scale Length 25 1/2″
Radius 9.5 at nut, 12″ compound at 22nd fret
Nut Width 42mm installed nut
Nut Material PPS-Flat Bottom
Heel Size approximately: 2 11/64″ wide by 3″ high and 5/8″ deep
FRETS & MORE
Number of Frets 22
Fret Size Medium – 2.4mm – Nickel
Inlays Pearloid Dots
Side Dots White
Truss Rod Single-adjust at headstock – 4mm wrench not included
Tuner Hole Size 10mm 6-in-line Modern Tuners
Mighty Mite® is not affiliated with Fender® and no Fender® warranty applies.
To validate the limited warranty, the original purchaser must complete a Product Registration Form and send within 10 days following the original date of receiving your neck. The warranty is not transferable.
For more information regarding the limited warranty, return and exchange policies go to www.MightyMite.com Resources/Warranty.
CONDITIONS OF USE
This replacement neck is for Fender® or Squier® by Fender® guitar only. This neck is licensed as a replacement neck and may not be used to assemble Non-Fender® Guitars. This neck is licensed to Mighty Mite® by Fender® Musical Instruments under a quality control trademark license.
