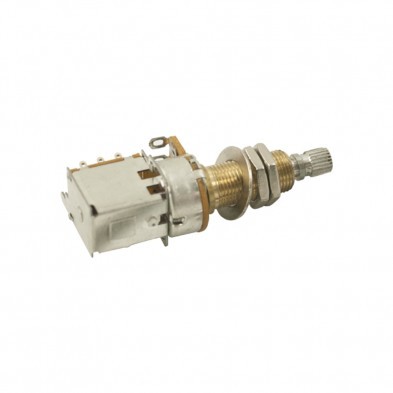

500K Audio taper guitar pot with push/push switch. Super tough construction and smooth feel in a compact size. Use for coil splitting, reverse phase switching and other functions.
- DPDT Push-Push switch
- ¼” split knurled shaft
- Linear taper
- 3/8-32 threads
- 16mm body diameter (widest point on switch body 17.8mm)
- .40″ bushing length
- 38″-.52″ shaft length.
Application: Amp, Guitar, Pedal
Resistance: 500k
Shaft: Split Knurled
Taper: Linear, Audio
Termination Style: Solder Lugs/Tabs
Type/Size: Switched, 16mm Single
| Body Depth | 1.1 in. | |
| Body Diameter | 0.66 in. | |
| Body Width | 0.96 in. | |
| Bushing Length | 40 in. | |
| Item Height | 0.92 in. | |
| Item Length | 2.2 in. | |
| Resistance | 500 kΩ | |
| Shaft Length | 0.38 in. | |
| U.S. Thread Major Diameter | 8 in. | |
| U.S. Thread Pitch | 32 tpi. |
